PRODUCT INFORMATION
We at Koraleen Enterprises have designed water quality sampling stations that will fill the needs of all purveyors large or small. In today's rapidly changing environment and business world, we provide quality products to accomplish quality services.
We Ship Internationally
email us at sales@koraleen.com
or PH: 760-743-0407 Fax: 760 743-1396
|

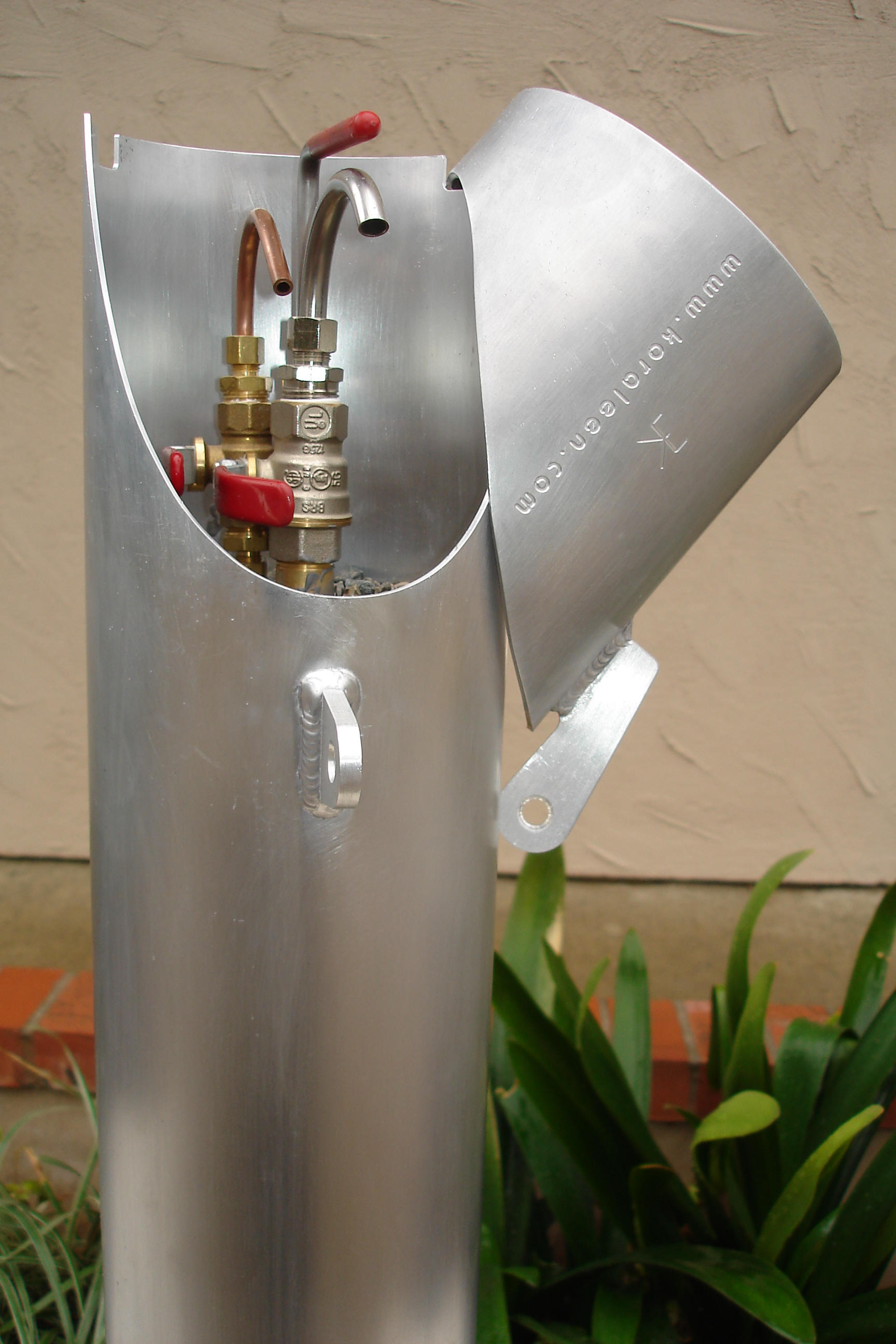

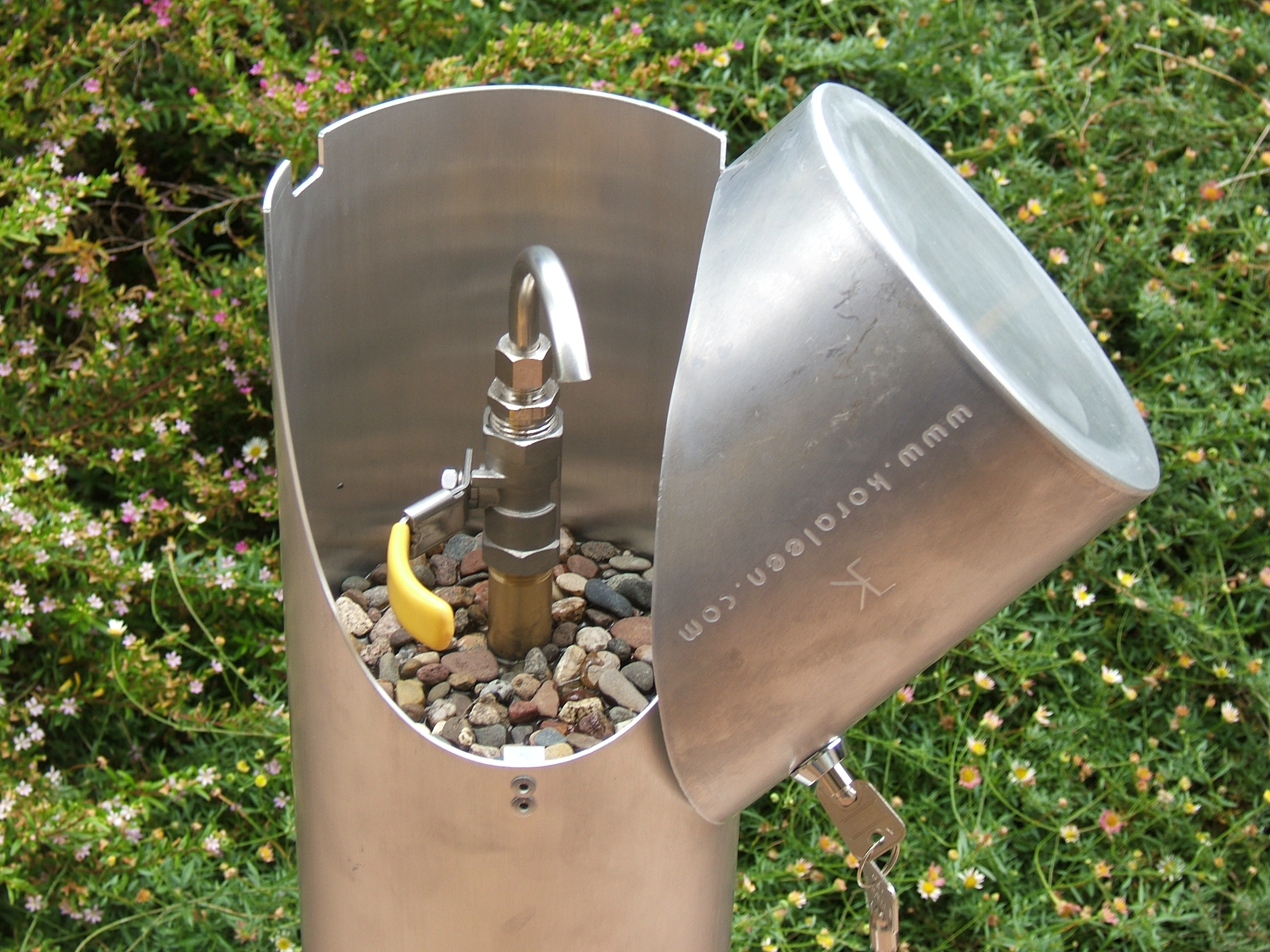

STATION GUARD XLT
Station Guard XLT housing is aluminum. It is 4' tall by 6"in diameter with a stainless steel lab valve. Our units are keyed alike for added security and convenience. The aluminum lids have no hinges to rust or maintain. Simply remove the lid and hang it on the side of the unit to remain sanitary and hands free while taking samples.
|
|
|
|
|
|
|
|
|
|

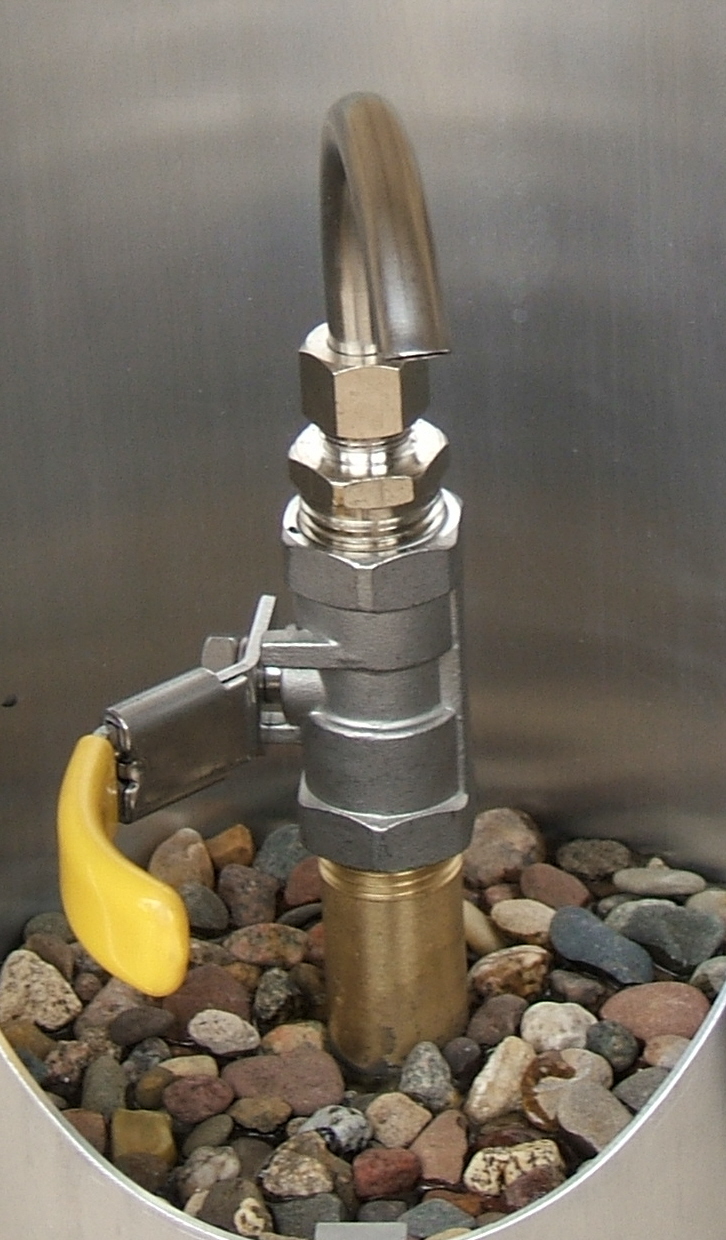

Water Quality Sampling Valve Each Sample Valve is a stainless steel, ball valve 1/2" x 3/8" with locking device, unibody, rated at 800 p.s.i., 1/2 female thread. Sampling valve can also be used in labs
|
|
|
KOR-COLD
The KOR-COLD is designed for cold/freezing climates. The units are 3 feet above grade The housing and lid are constructed of aluminum. The unit is secured with a padlock hasp. All valves are brass. The piping is brass or hard copper. The shut off rod is stainless steel. This unit features a dry barrel system. We accommodate Bury depth up to 8 ft.
Call for more information 760-743-0407
|
KORALEEN KORCOLDSHUTOFF VALVE.pdf
As described in our standard drawing, the sampling station is 4 ft. tall and 6 inches in diameter. We recommend burying unit 1 foot in the ground leaving a working height of 3 feet. Unit can be filled with pea gravel or concrete. Assembly with bolt down brackets / with pad lock hasp are available.
This is a typical type of installation. Numerous things can be done to customize the installation to your specific needs.
We also have this drawing available in Auto CAD and PDF format.
To see a larger picture of the Typical Installation
